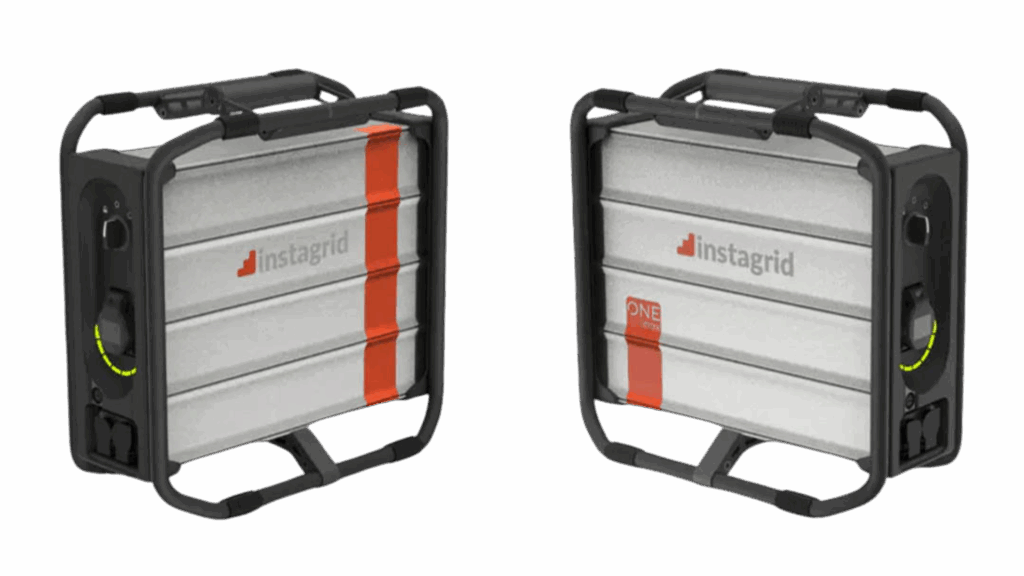

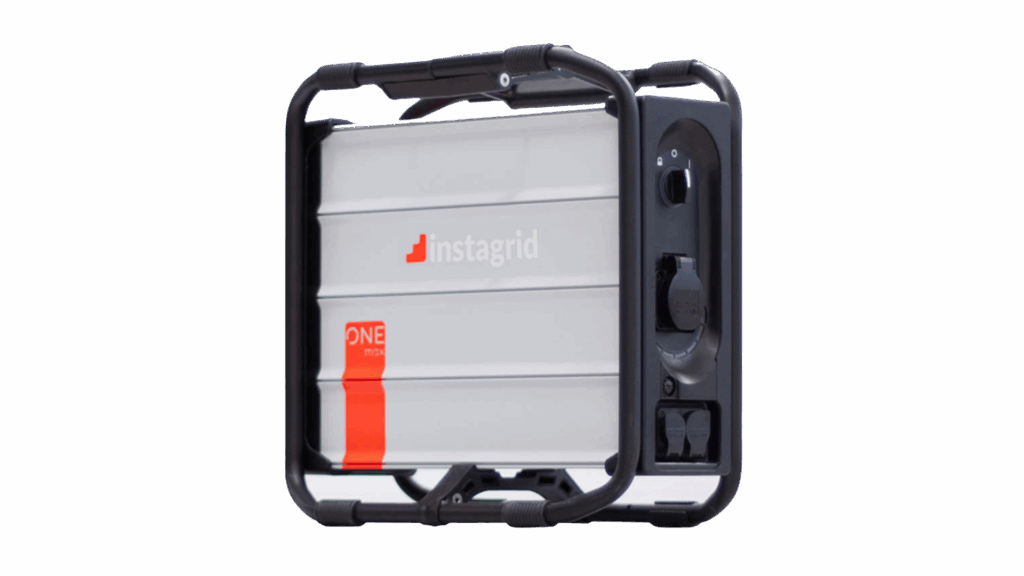

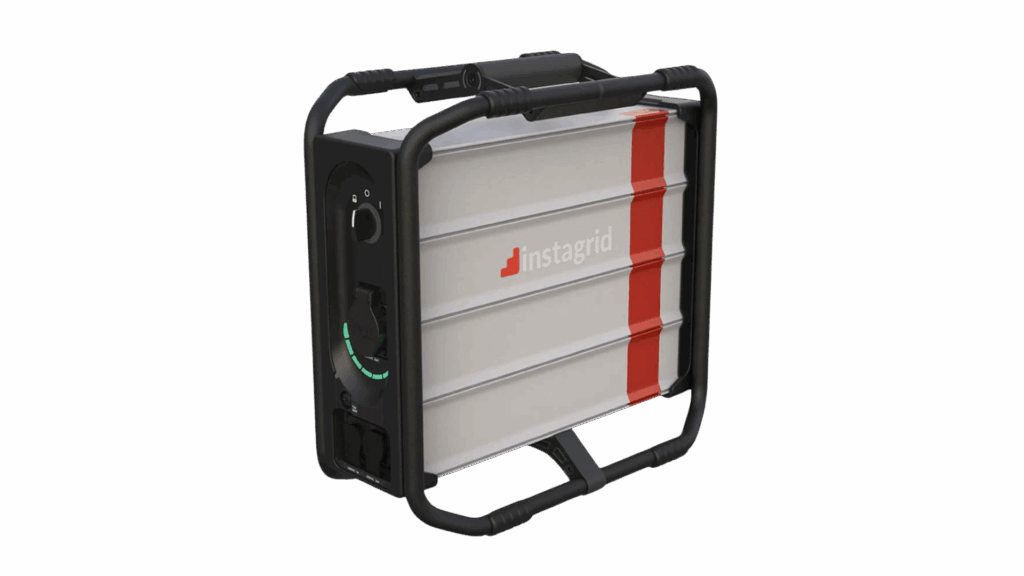

Instagrid ONE Max
3.6 kW / 2.1 kWh
Power in your hands
The Instagrid ONE Max Portable Power Station (901-00004) is a lightweight, robust, and powerful battery power supply that delivers 230V AC wherever it’s needed. This portable lithium-ion energy storage system has a rated energy content of 2,100Wh, divided into independent elements of less than 100Wh each. Weighing only 20 kg and with an output of 3.6 kW, the Instagrid ONE Max provides fast, convenient power on the go. It also features built-in Bluetooth for seamless communication with smartphones, tablets, or PCs.



Key features
General
- Delivers power equivalent to 16 A / 230 V mains power
- Use any AC electrical equipment with a suitable plug
- Fast recharging from a standard 230 V supply in under 3 hours
- Battery capacity: 2.1 kWh
- Weight: 20 kg
- Dimensions: 420 x 210 x 420 mm
- IP Class: IP 54
- Protection class: Class II / double insulated
- Noise emission: < 10 dB(A)
- Storage (switched off): > 3 years
Electrical connections
- Output socket: BS 1363 13 A
- Output socket: Neutrik powerCON TRUE1 TOP®
- Input charging socket: Neutrik powerCON TRUE1 TOP®
- Input fuse: T5A L 250V
Mode of operation: Charging
- Input voltage: 240 V AC / 50 Hz
- Rated power: 1.0 kW (4 A)
- Charge duration: < 3 h up to 100%
- Charging temperature: 0 °C up to 45 °C

3.6 kW / 2.1 kWh
The Instagrid ONE offers 2.1 kWh of power with a rated output of 3.6 kW, providing sufficient energy for various professional applications.

20KG Weight
Despite its high capacity, the Instagrid ONE weighs only 20 kg, making it easy to transport to any location.

IP54 Rated
Suitable for all weather conditions, the Instagrid ONE is built to perform both indoors and outdoors without compromising on safety.

Various Applications
Power your film camera, haze machine, LED lights, and more with the Instagrid ONE’s robust energy output.

Silent Operation
With noise emissions under 10 dB(A), the Instagrid ONE operates silently, ideal for film sets and sensitive environments.

Zero Emissions
Instagrid ONE generates no local emissions, supporting eco-friendly and sustainable productions.
Three times the capacity

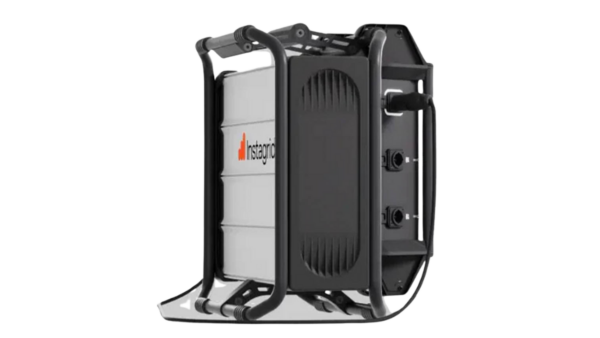

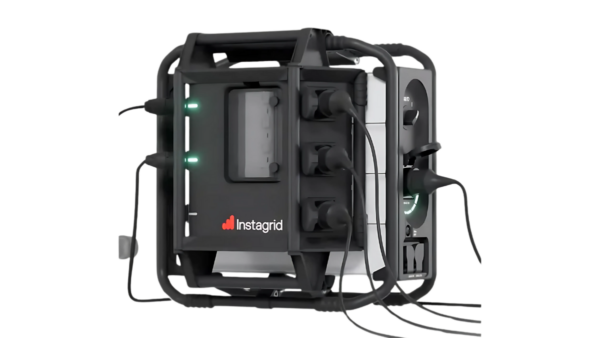

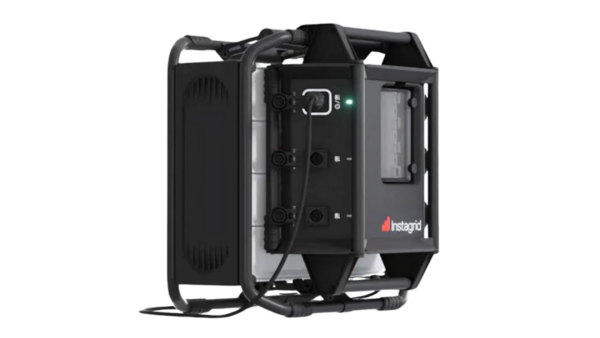

Instagrid LINK (990-00002) increases capacity by 3, empowering longer-lasting applications which is a perfect fit for the film and TV industry. Connect the Instagrid LINK to the Instagrid ONE to expand its features and enable new and powerful applications. Island mode means you can hot-swap seamlessly for extended run times.
- Increase capacity x 3 – Boost your capacity up to 6.3kWh
- Island Mode – Hotswap ONE units in and out without interruption
- Mission critical power supply – Set up a UPS by connecting ONE to the mains
- Run more devices – Use several high-powered tools at the same time




Transform your off-grid experience with Instagrid ONE MAX and LINK– delivering powerful, silent, and emission-free energy.
Take Action for a Sustainable Future
Switching to sustainable battery power is essential for reducing our carbon footprint and combating climate change. Our industry has the power to drive significant positive change by adopting zero-emission, silent operation, and durable battery technologies. Join us in making a difference—fill out the contact form to learn more about how you can transition to green energy solutions with NXTGENbps.
